Observability — PentAGI

Trace every LLM call with Langfuse and watch the whole system with Grafana and OpenTelemetry — two optional stacks next to the built-in dashboard.

Two optional stacks show what PentAGI is doing: Langfuse for model calls, and Grafana with OpenTelemetry for the rest of the system.

PentAGI's own Dashboard already charts flows, tool calls, tokens and cost over time; the stacks below add full traces and system metrics.

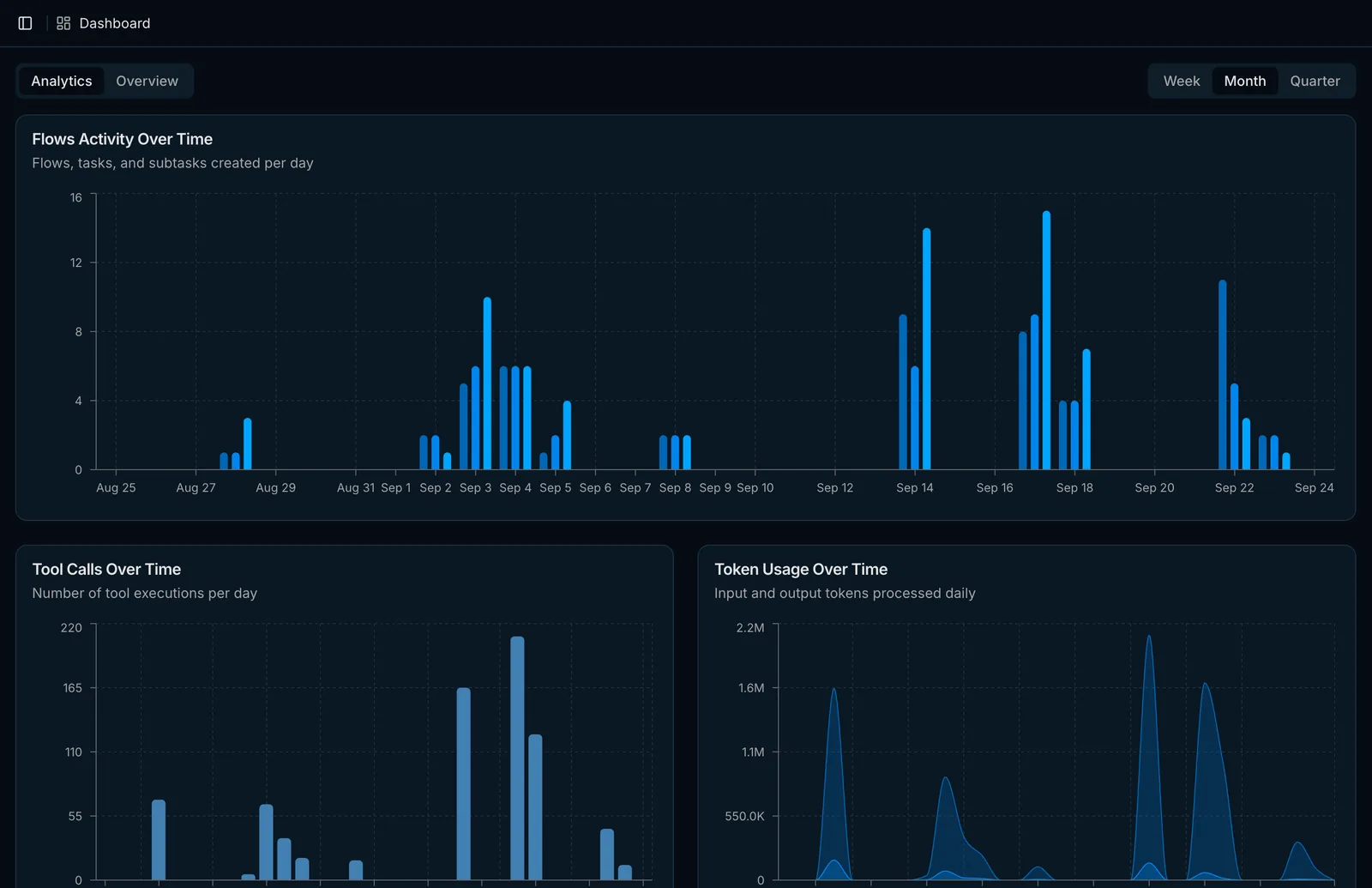

The built-in dashboard

Langfuse

Langfuse records prompts, completions, tokens and costs per agent.

LANGFUSE_BASE_URL=http://langfuse-web:3000
LANGFUSE_PROJECT_ID=same_as_LANGFUSE_INIT_PROJECT_ID
LANGFUSE_PUBLIC_KEY=same_as_LANGFUSE_INIT_PROJECT_PUBLIC_KEY
LANGFUSE_SECRET_KEY=same_as_LANGFUSE_INIT_PROJECT_SECRET_KEY

Set the Langfuse credentials in .env (LANGFUSE_POSTGRES_*, LANGFUSE_CLICKHOUSE_*, LANGFUSE_REDIS_AUTH, LANGFUSE_SALT, LANGFUSE_ENCRYPTION_KEY, LANGFUSE_NEXTAUTH_SECRET, LANGFUSE_INIT_USER_* and the project keys), then start the stack:

curl -O https://raw.githubusercontent.com/vxcontrol/pentagi/main/docker-compose-langfuse.yml
docker compose -f docker-compose.yml -f docker-compose-langfuse.yml up -d

The Langfuse UI is available at http://localhost:4000.

Grafana and OpenTelemetry

OTEL_HOST=otelcol:8148

git clone --depth 1 https://github.com/vxcontrol/pentagi.git pentagi-src
cp -r pentagi-src/observability ./observability
rm -rf pentagi-src
curl -O https://raw.githubusercontent.com/vxcontrol/pentagi/main/docker-compose-observability.yml
docker compose -f docker-compose.yml -f docker-compose-observability.yml up -d

Grafana is available at http://localhost:3000, with metrics in VictoriaMetrics, traces in Jaeger and logs in Loki.

To send Langfuse telemetry into the same stack, set LANGFUSE_OTEL_EXPORTER_OTLP_ENDPOINT=http://otelcol:4318.

Everything together

git clone --depth 1 https://github.com/vxcontrol/pentagi.git pentagi-src
cp -r pentagi-src/examples/graphiti ./graphiti
cp -r pentagi-src/examples/neo4j ./neo4j
rm -rf pentagi-src
curl -O https://raw.githubusercontent.com/vxcontrol/pentagi/main/docker-compose-graphiti.yml
docker compose \
  -f docker-compose.yml \
  -f docker-compose-langfuse.yml \
  -f docker-compose-graphiti.yml \
  -f docker-compose-observability.yml \
  up -d
